Slide 1: Xavier Jarque & Núria Fagella © Complex Trees bernat@espigule.com Topics in Complex Dynamics 2019 IMUB, Universitat de Barcelona, March 28th Bernat Espigulé arXiv:1902.11

Slide text

Xavier Jarque & Núria Fagella © Complex Trees bernat@espigule.com Topics in Complex Dynamics 2019 IMUB, Universitat de Barcelona, March 28th Bernat Espigulé arXiv:1902.11282 Families of connected self-similar sets generated by Complex Trees

Slide 22 / 36

Slide 2: 2014 © Complex Trees Thurston’s last paper Bill Thurston (1946 – 2012) Mathematics is a process of staring hard enough at the fog of confusion to eventually break through

Slide text

2014 © Complex Trees Thurston’s last paper Bill Thurston (1946 – 2012) Mathematics is a process of staring hard enough at the fog of confusion to eventually break through to improved clarity. Thurston ENTROPY IN DIMENSION ONE arxiv.org/abs/1402.2008

Slide 33 / 36

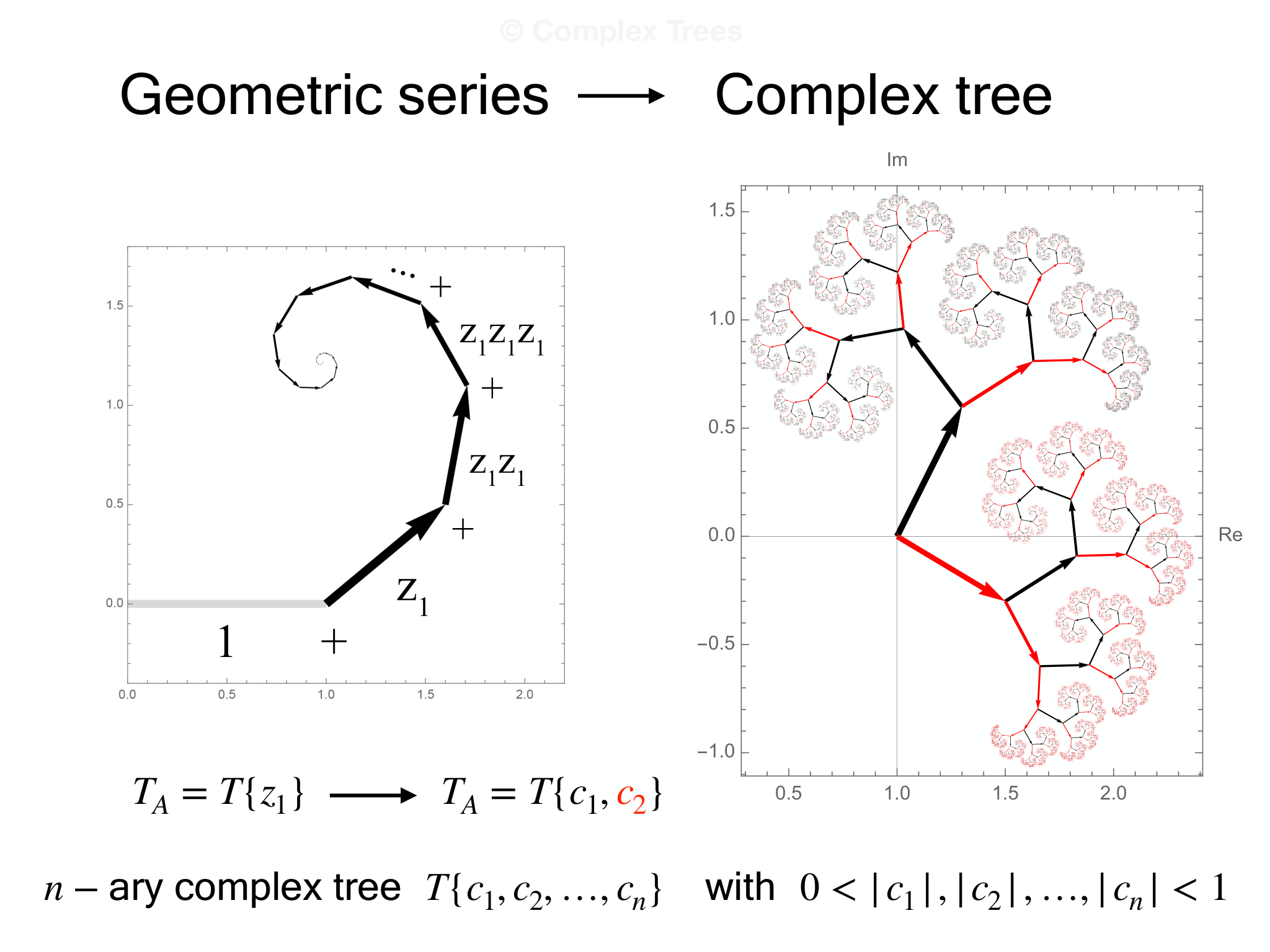

Slide 3: © Complex Trees Complex tree Geometric series

Slide text

Slide 44 / 36

Slide text

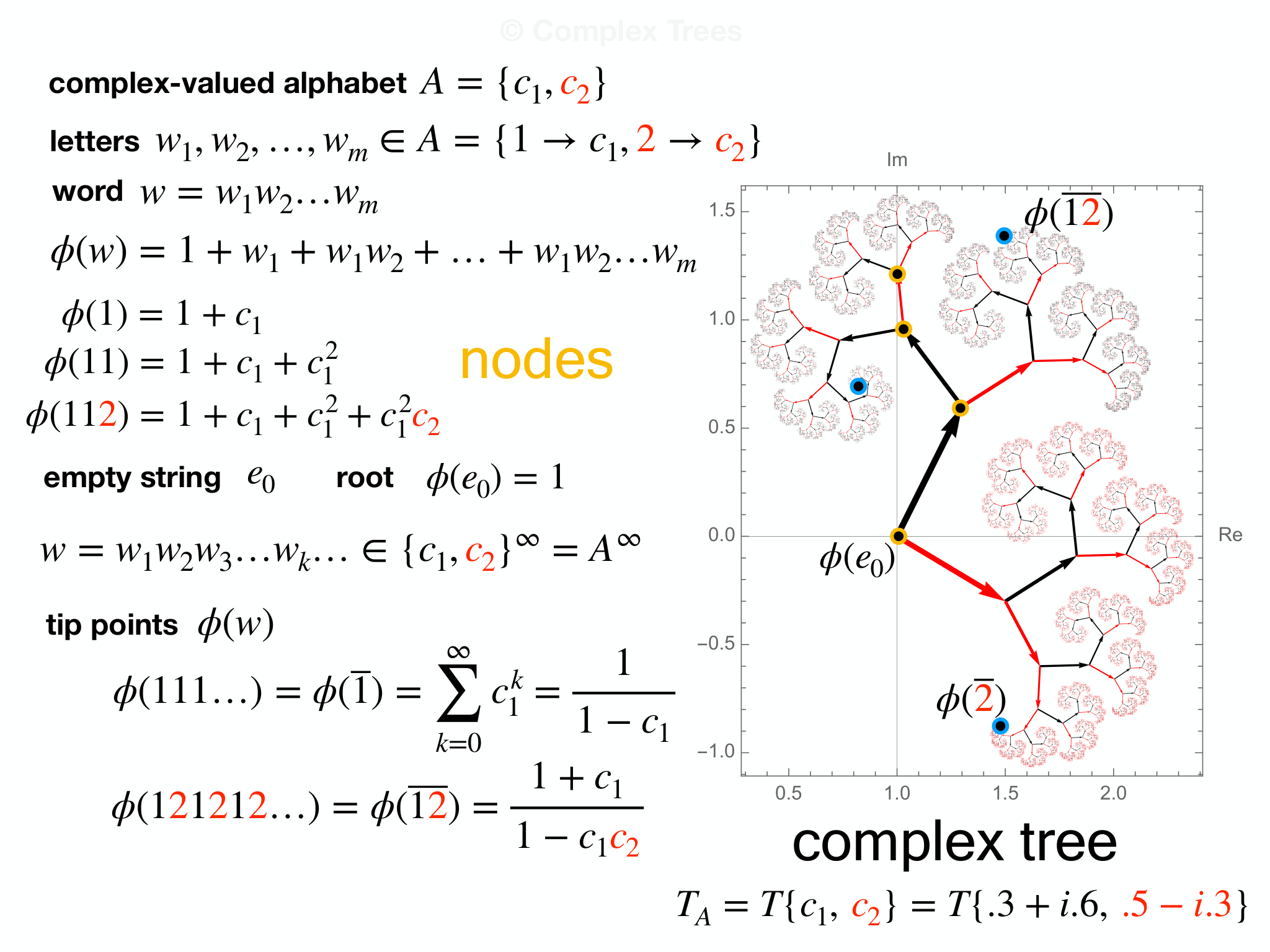

empty string complex-valued alphabet letters complex tree © Complex Trees root nodes tip points word

Slide 55 / 36

Slide text

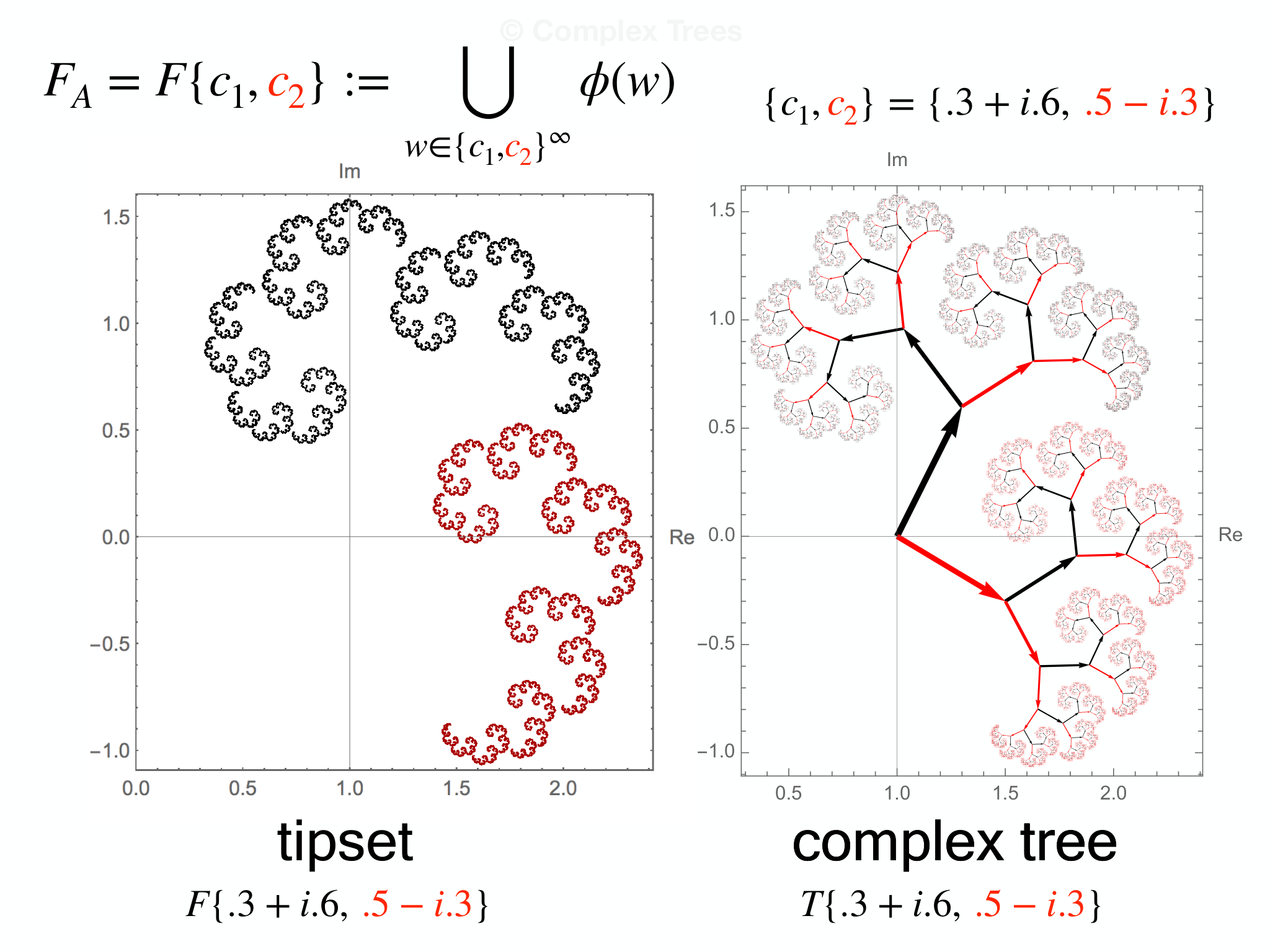

tipset complex tree © Complex Trees complex tree

Slide 66 / 36

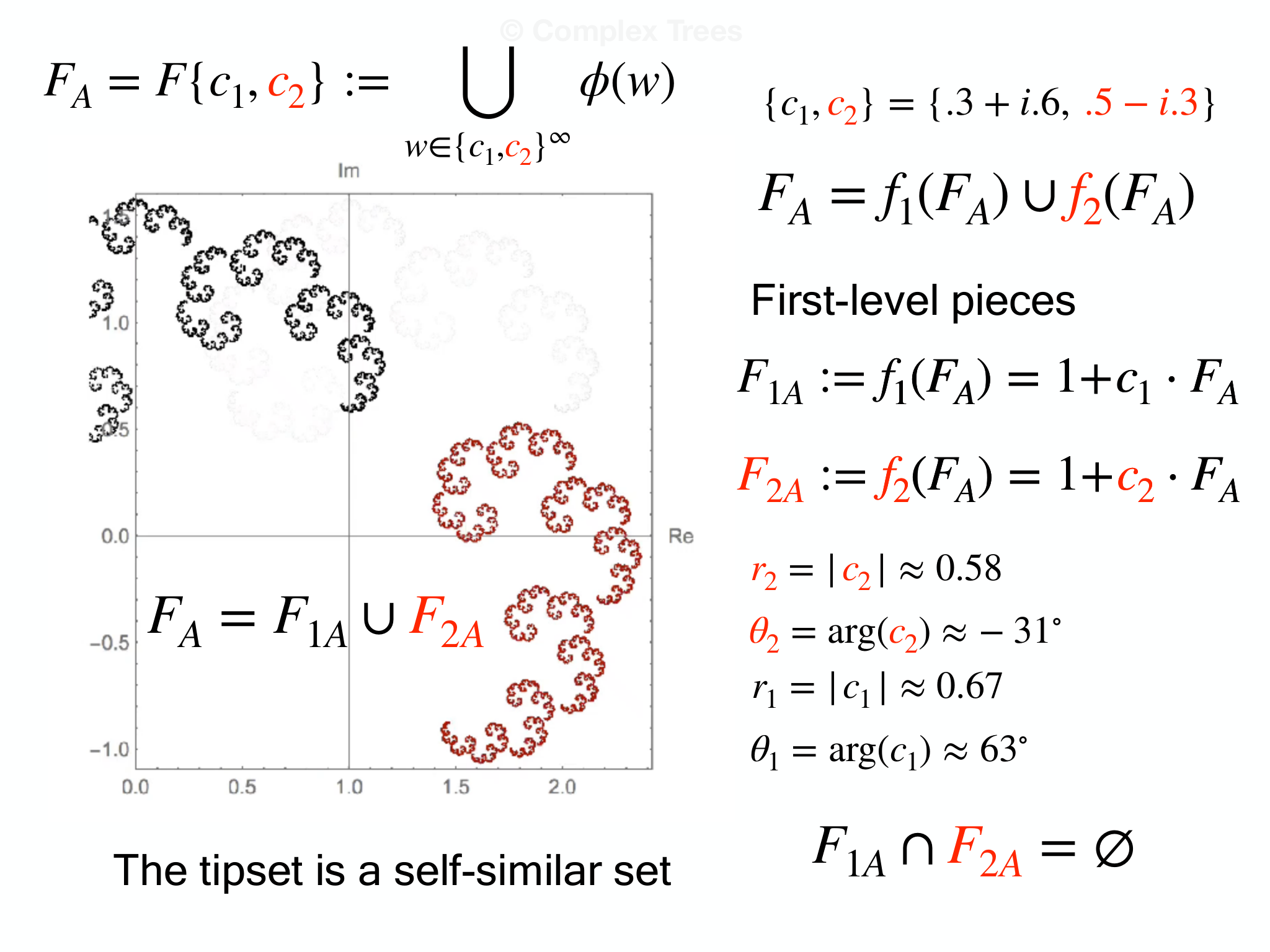

Slide 6: © Complex Trees First-level pieces The tipset is a self-similar set

Slide text

Slide 77 / 36

Slide text

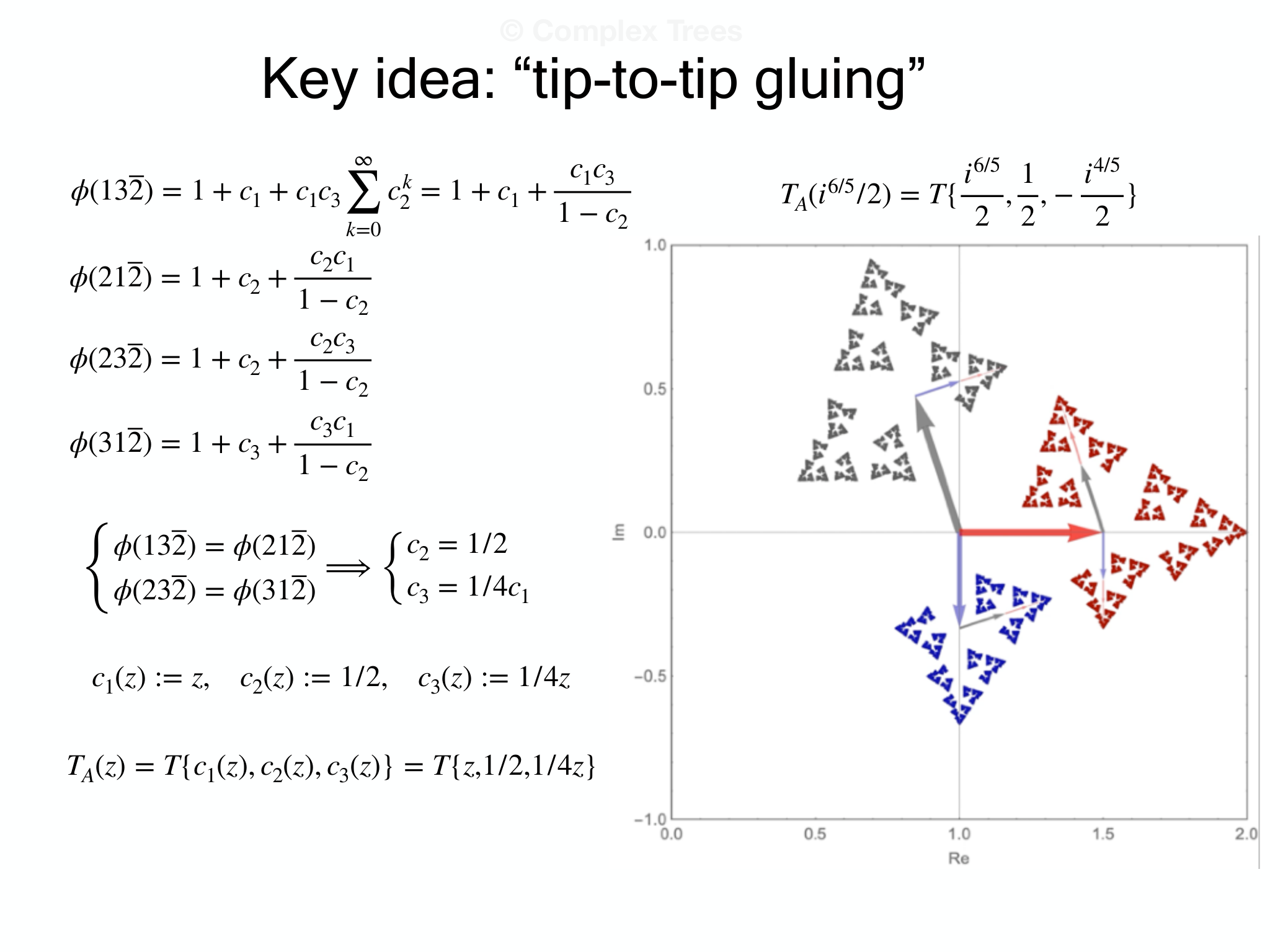

Key idea: “tip-to-tip gluing” © Complex Trees

Slide 88 / 36

Slide text

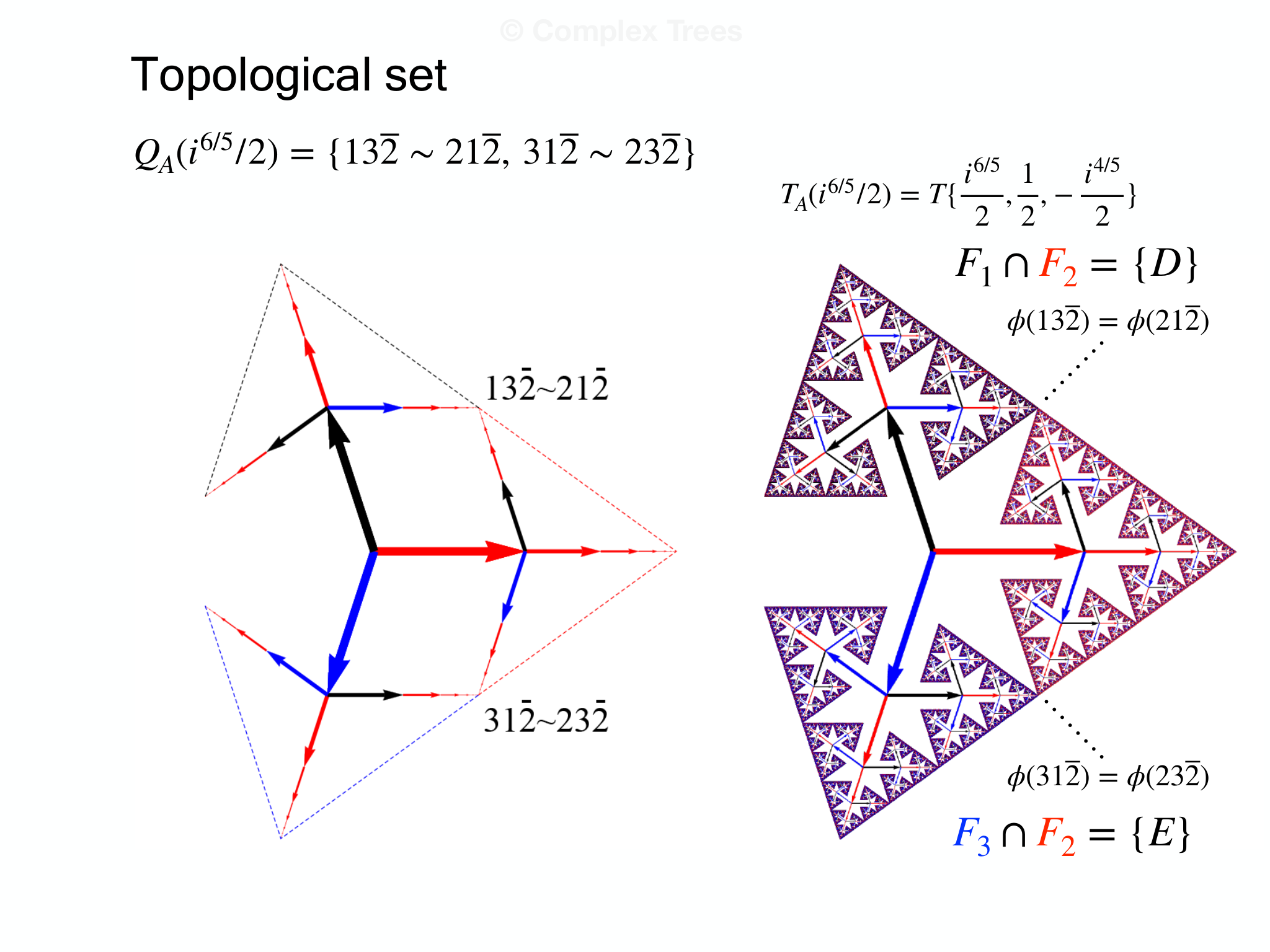

Topological set © Complex Trees

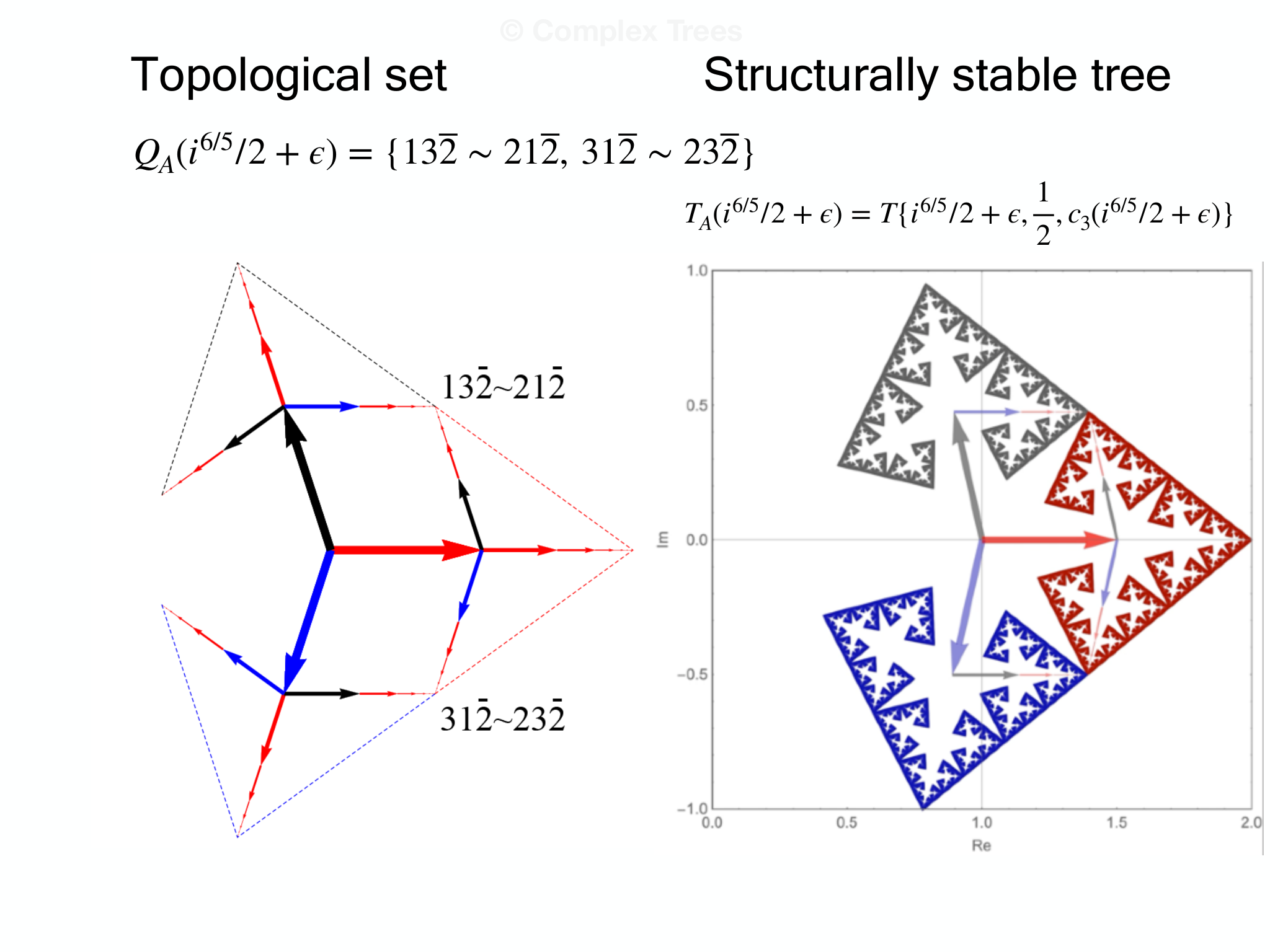

Slide 99 / 36

Slide text

Structurally stable tree Topological set © Complex Trees

Slide 1010 / 36

Slide text

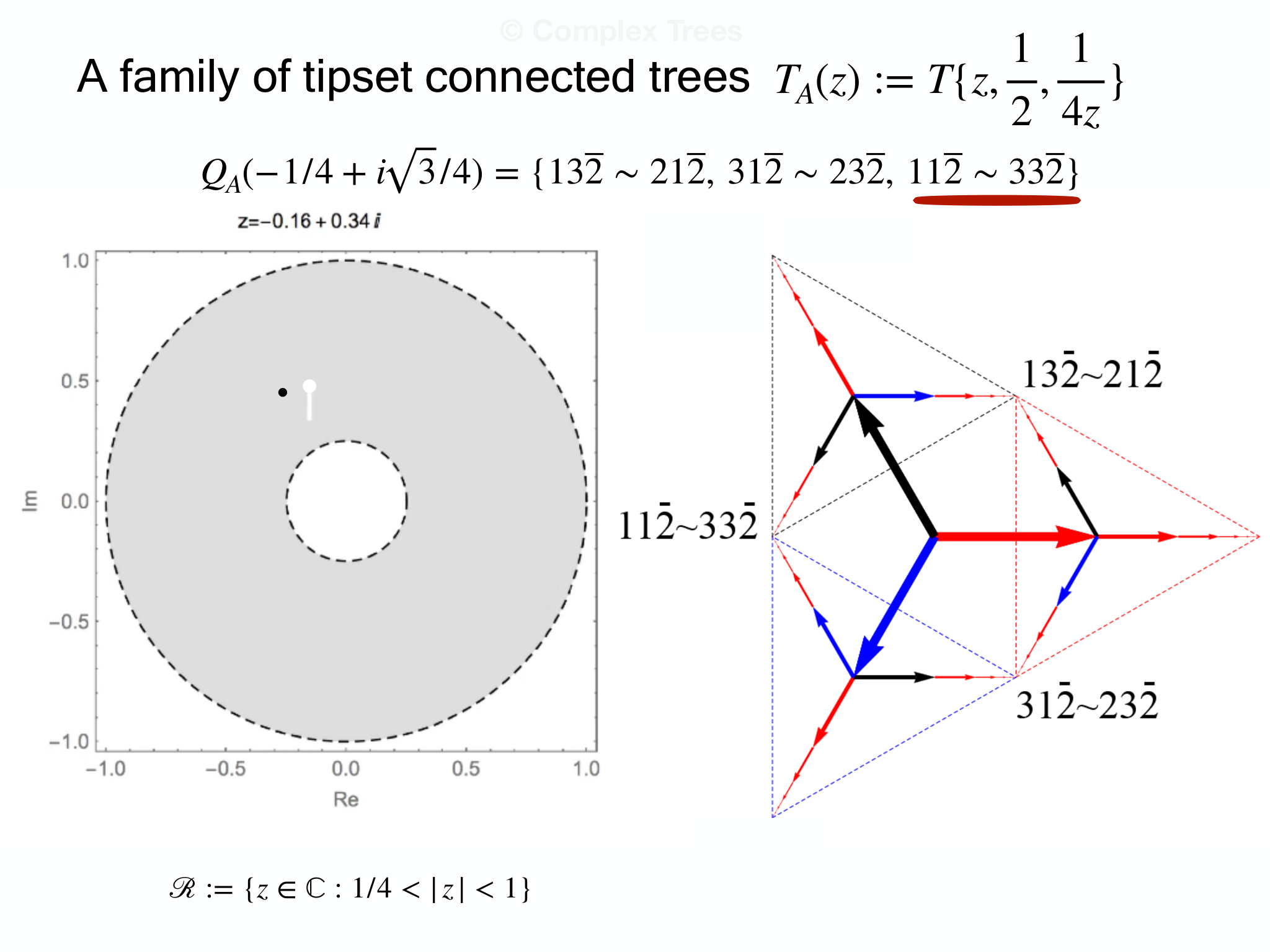

A family of tipset connected trees © Complex Trees

Slide 1111 / 36

Slide text

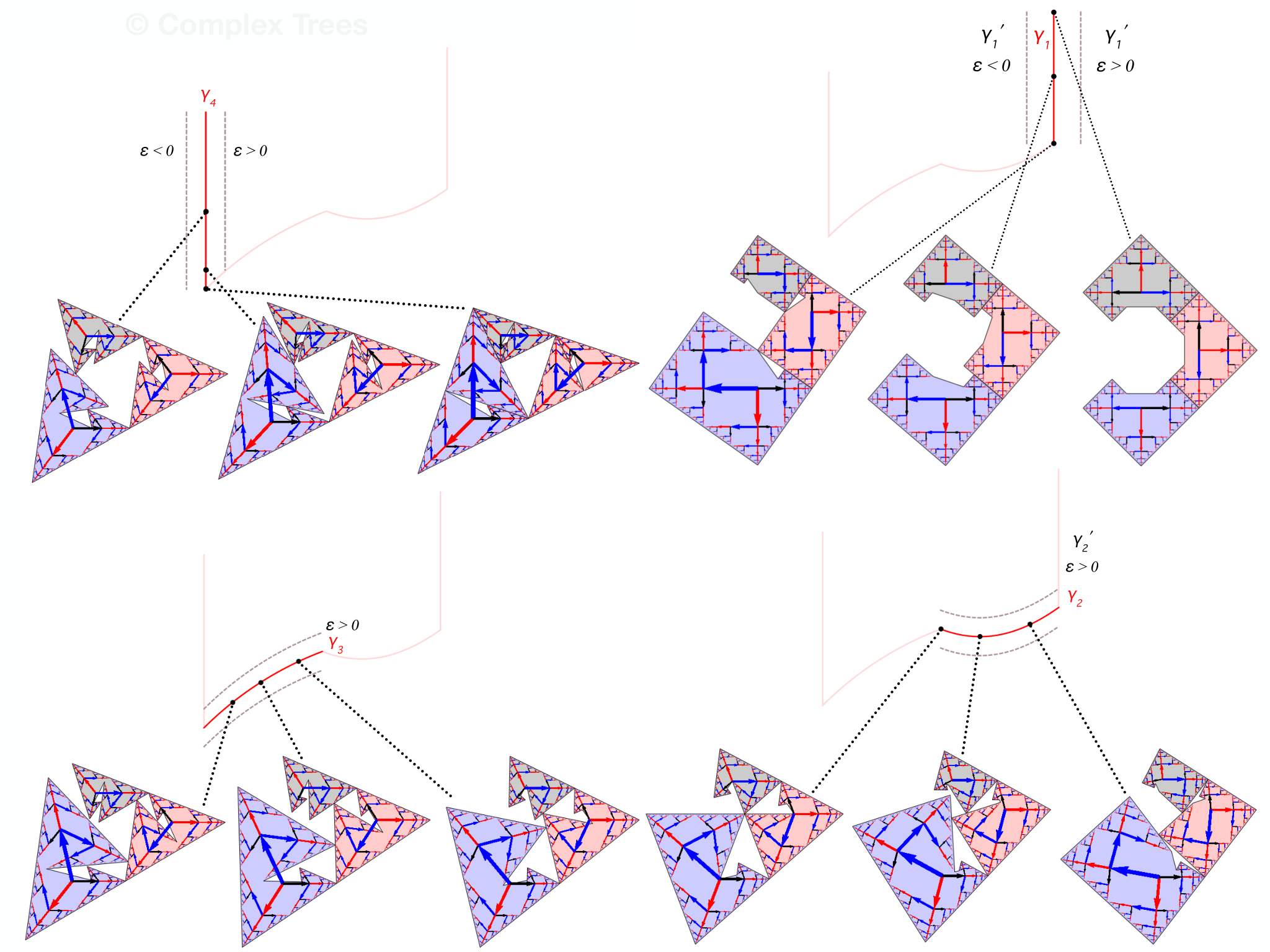

Slide 1212 / 36

Slide text

Slide 1313 / 36

Slide text

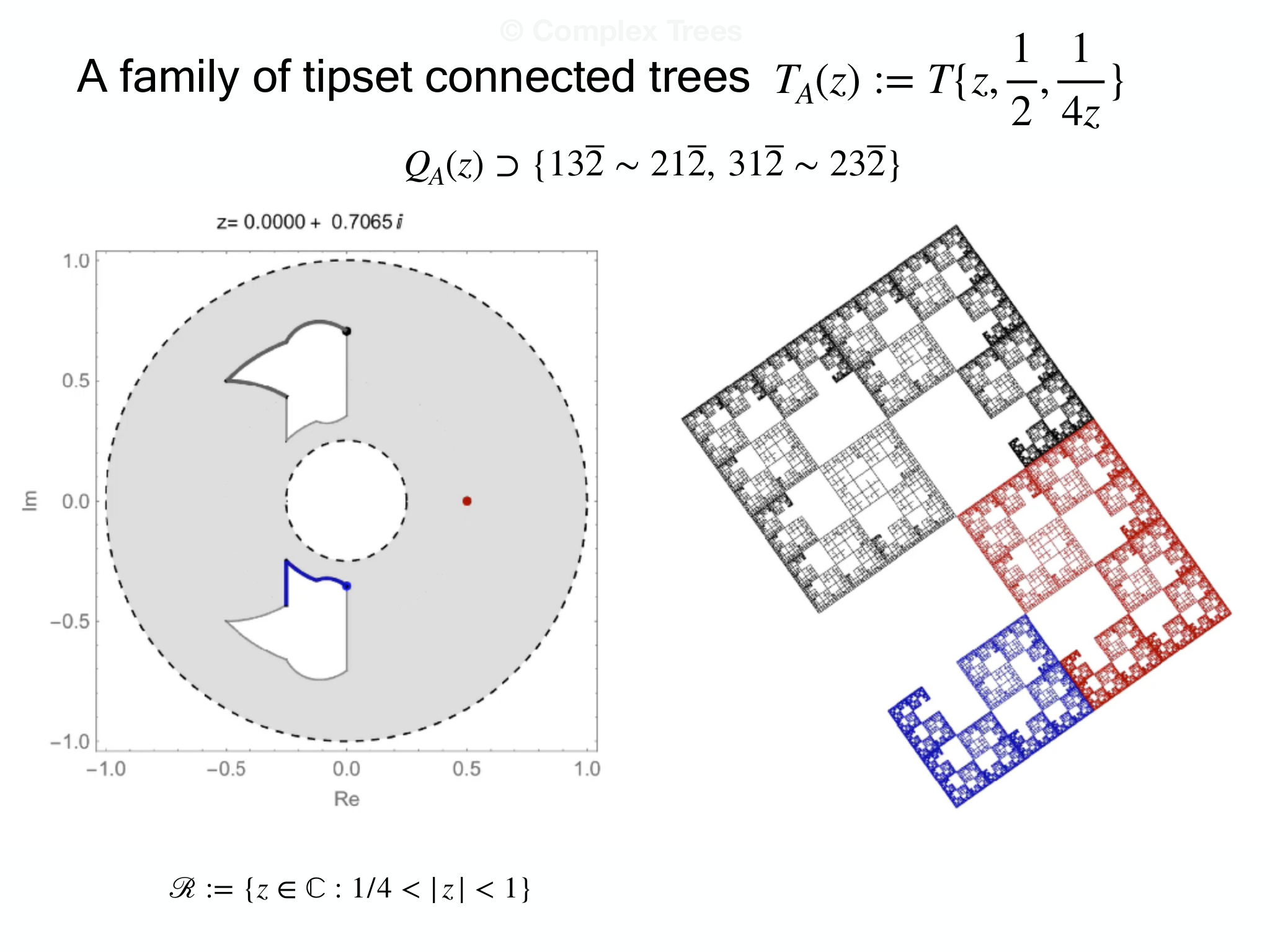

A family of tipset connected trees © Complex Trees

Slide 1414 / 36

Slide text

Slide 1515 / 36

Slide text

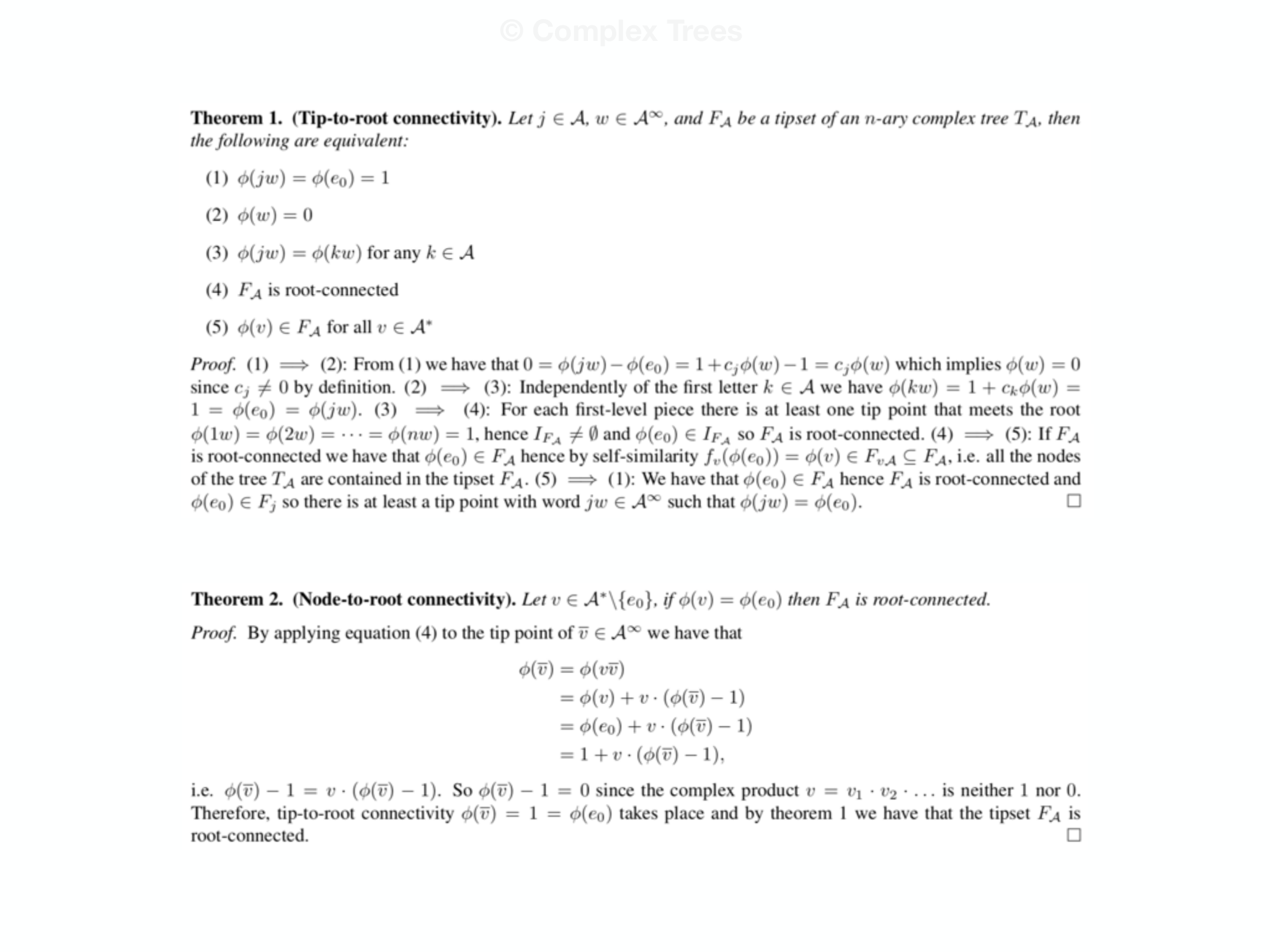

Slide 1616 / 36

Slide text

Slide 1717 / 36

Slide text

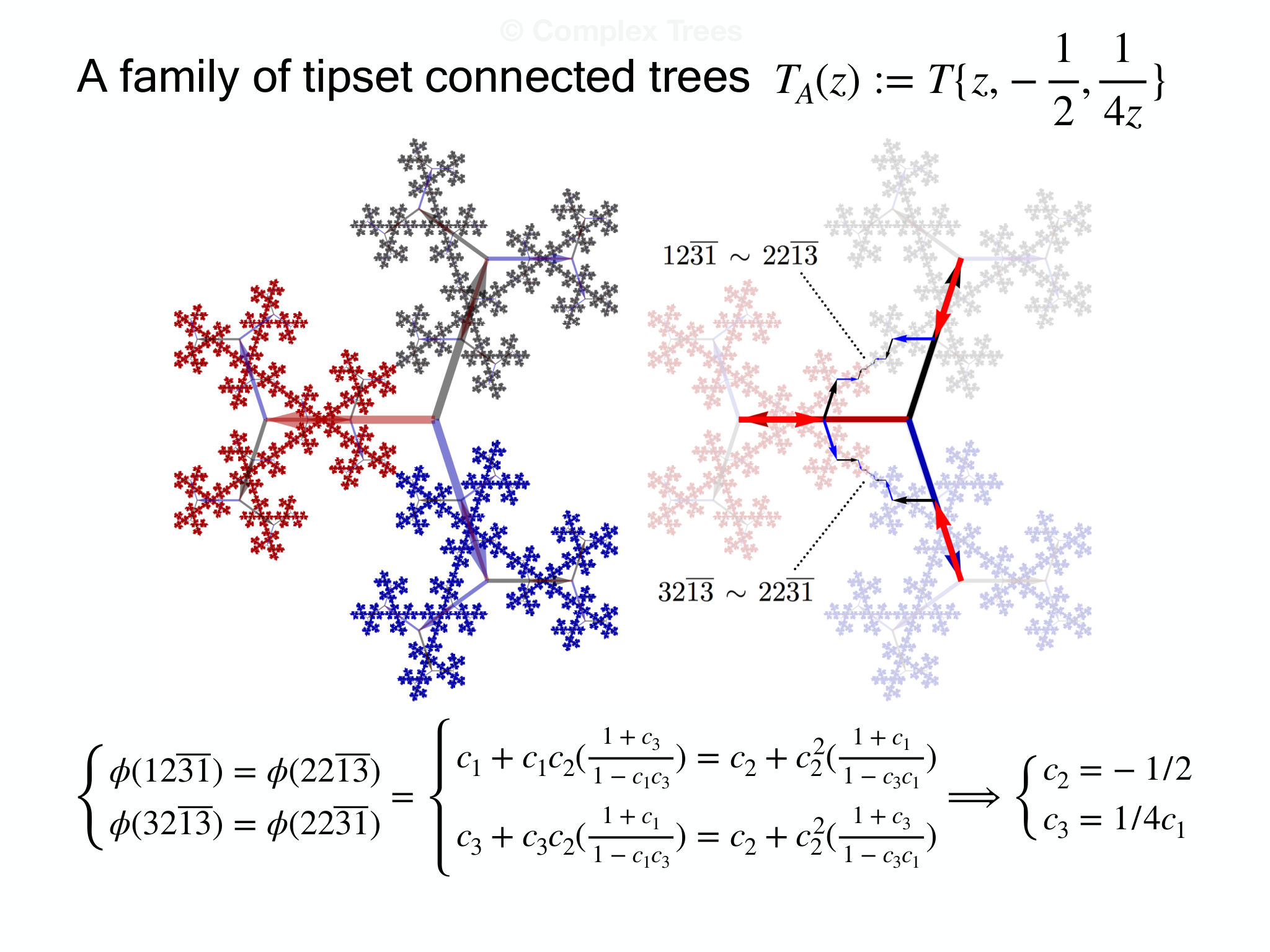

Slide 1818 / 36

Slide text

A family of tipset connected trees © Complex Trees

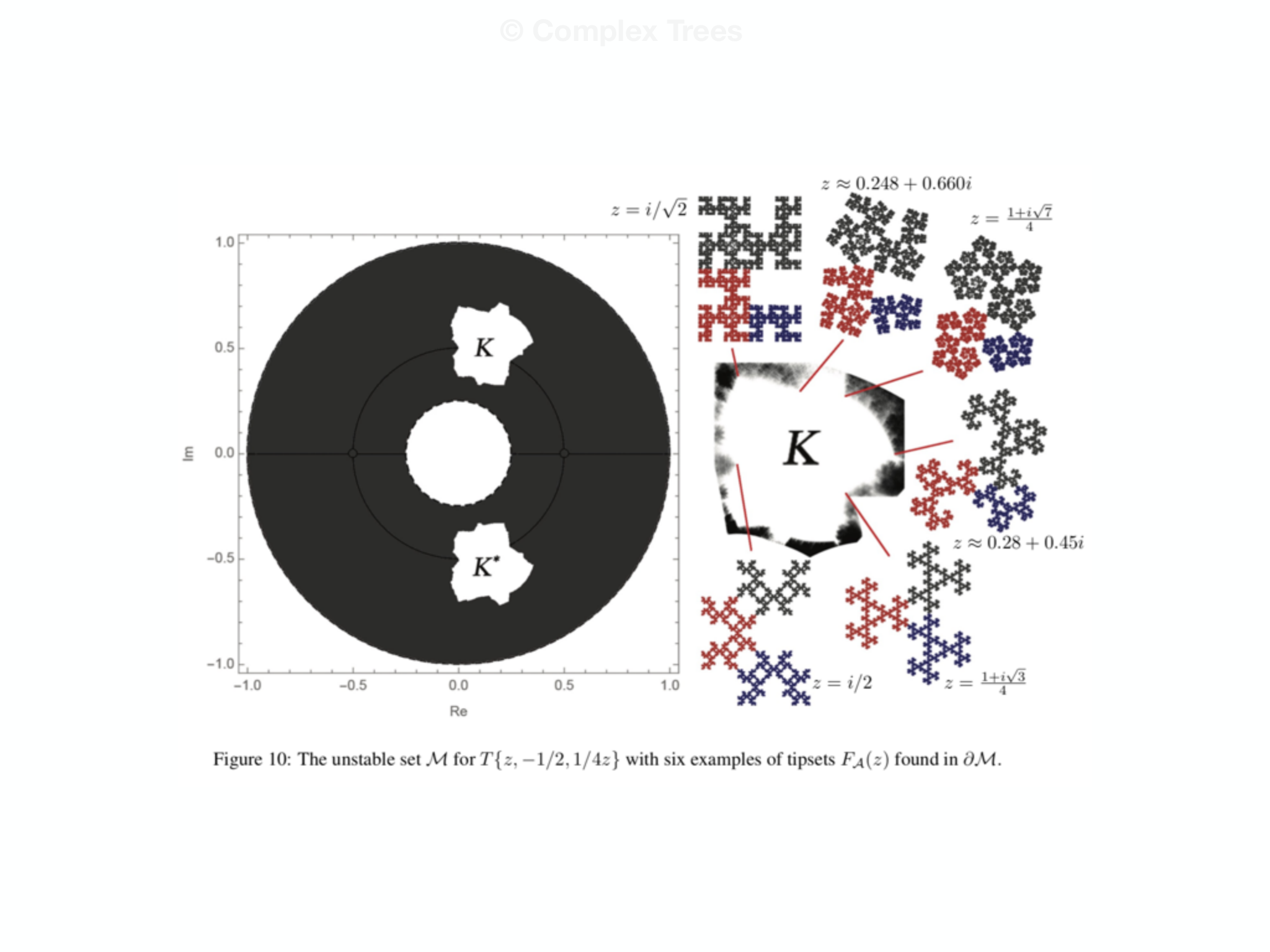

Slide 1919 / 36

Slide text

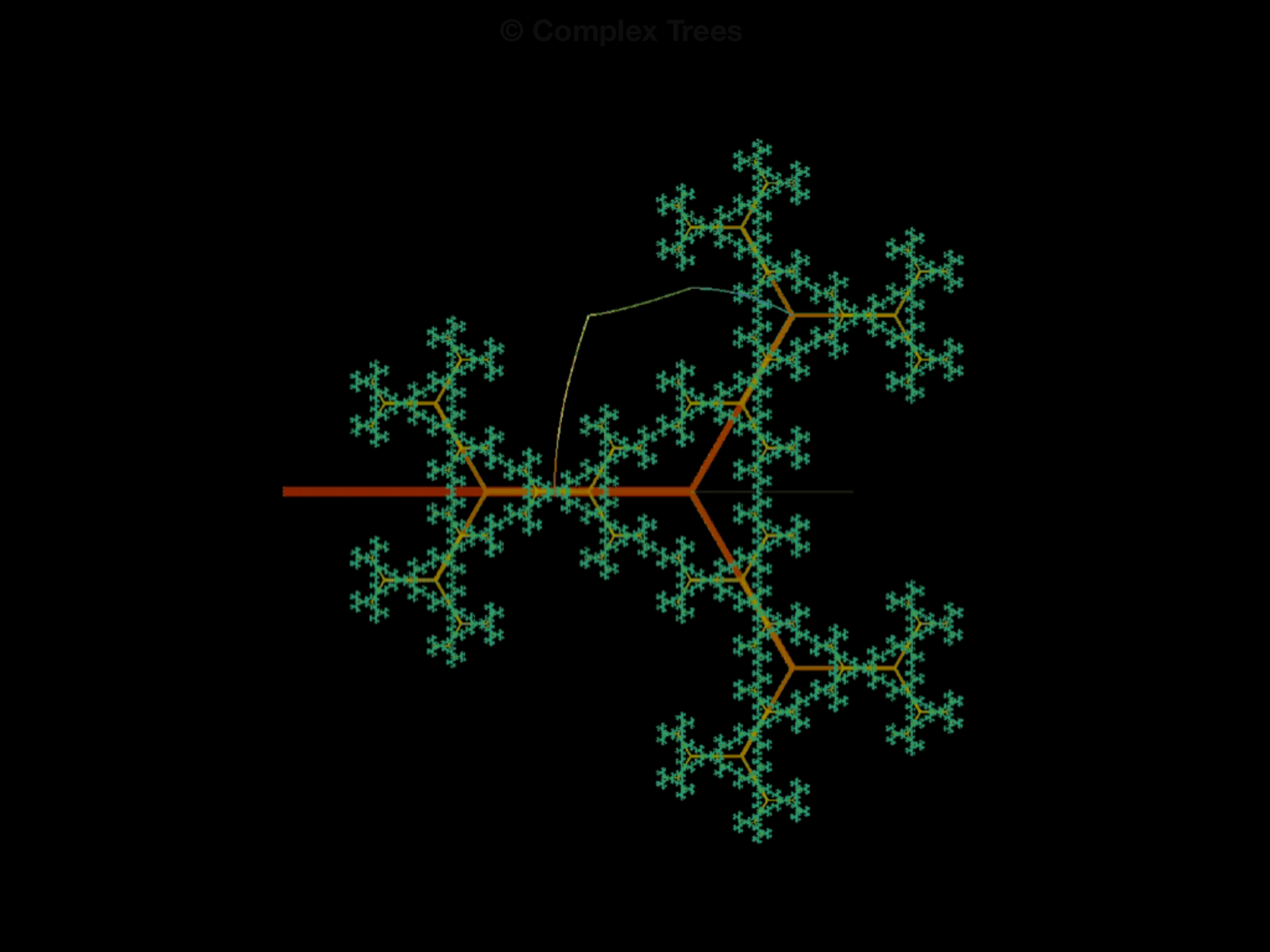

Slide 2020 / 36

Slide text

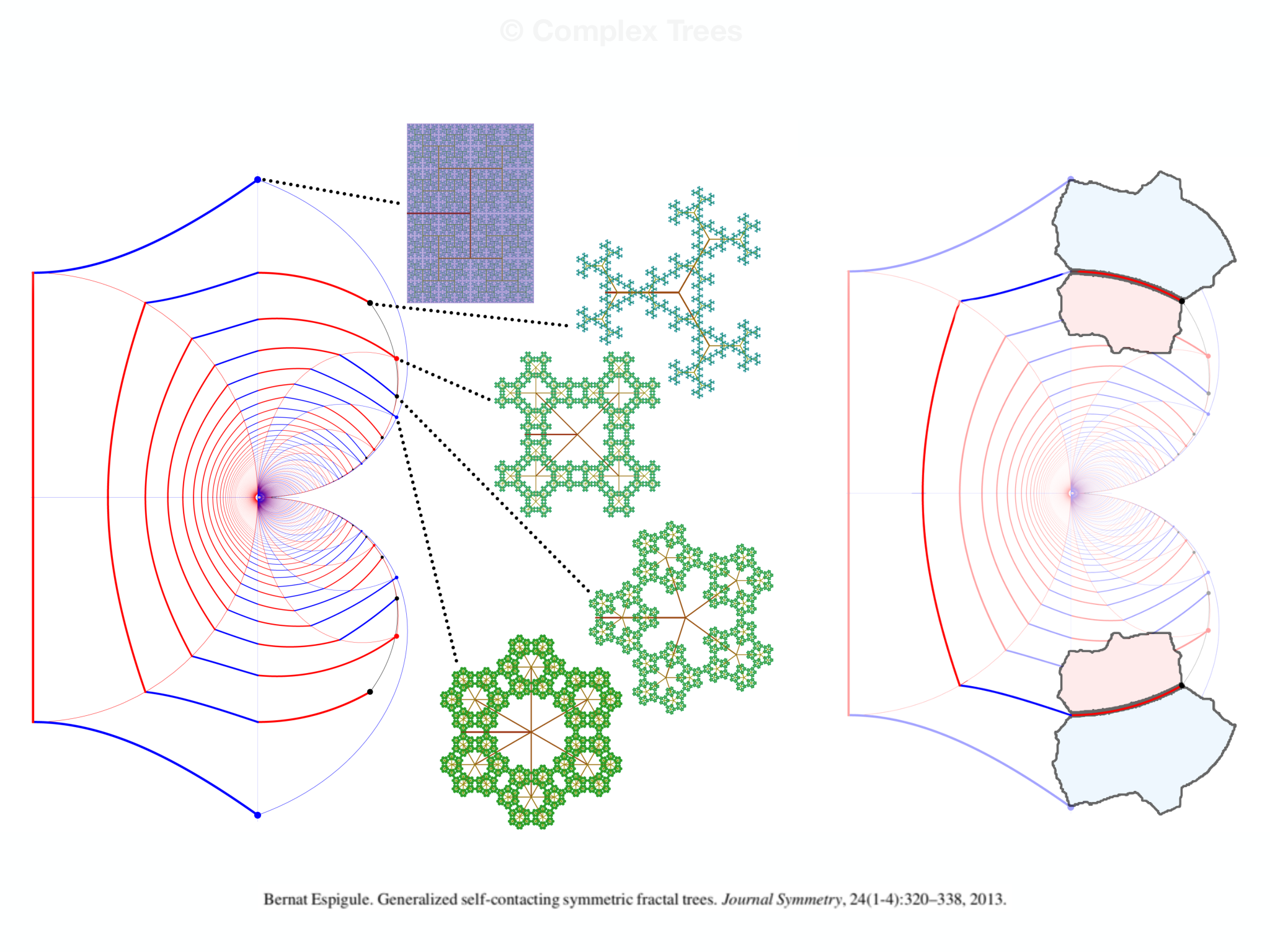

Slide 2121 / 36

Slide text

Slide 2222 / 36

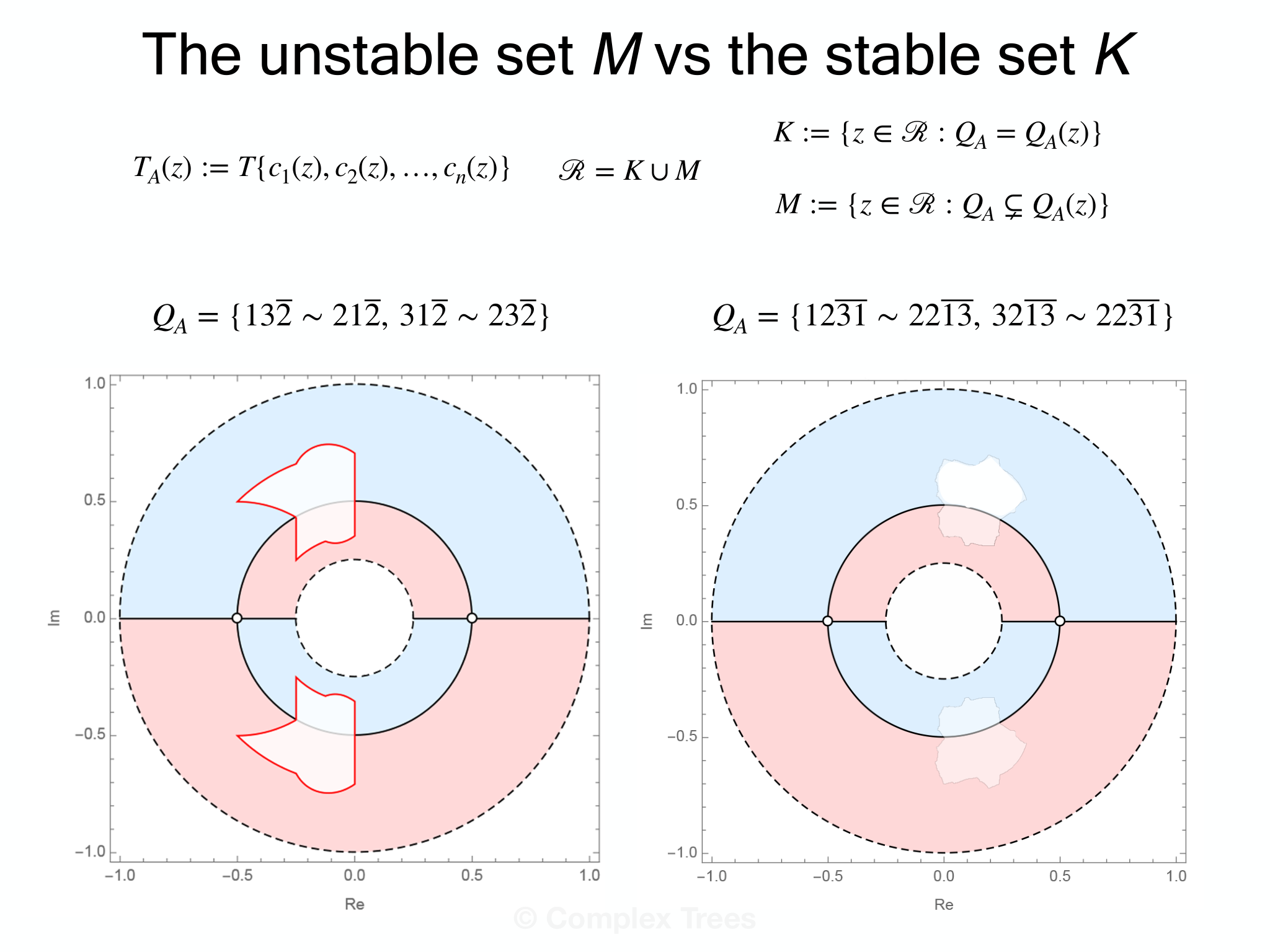

Slide 22: © Complex Trees The unstable set M vs the stable set K

Slide text

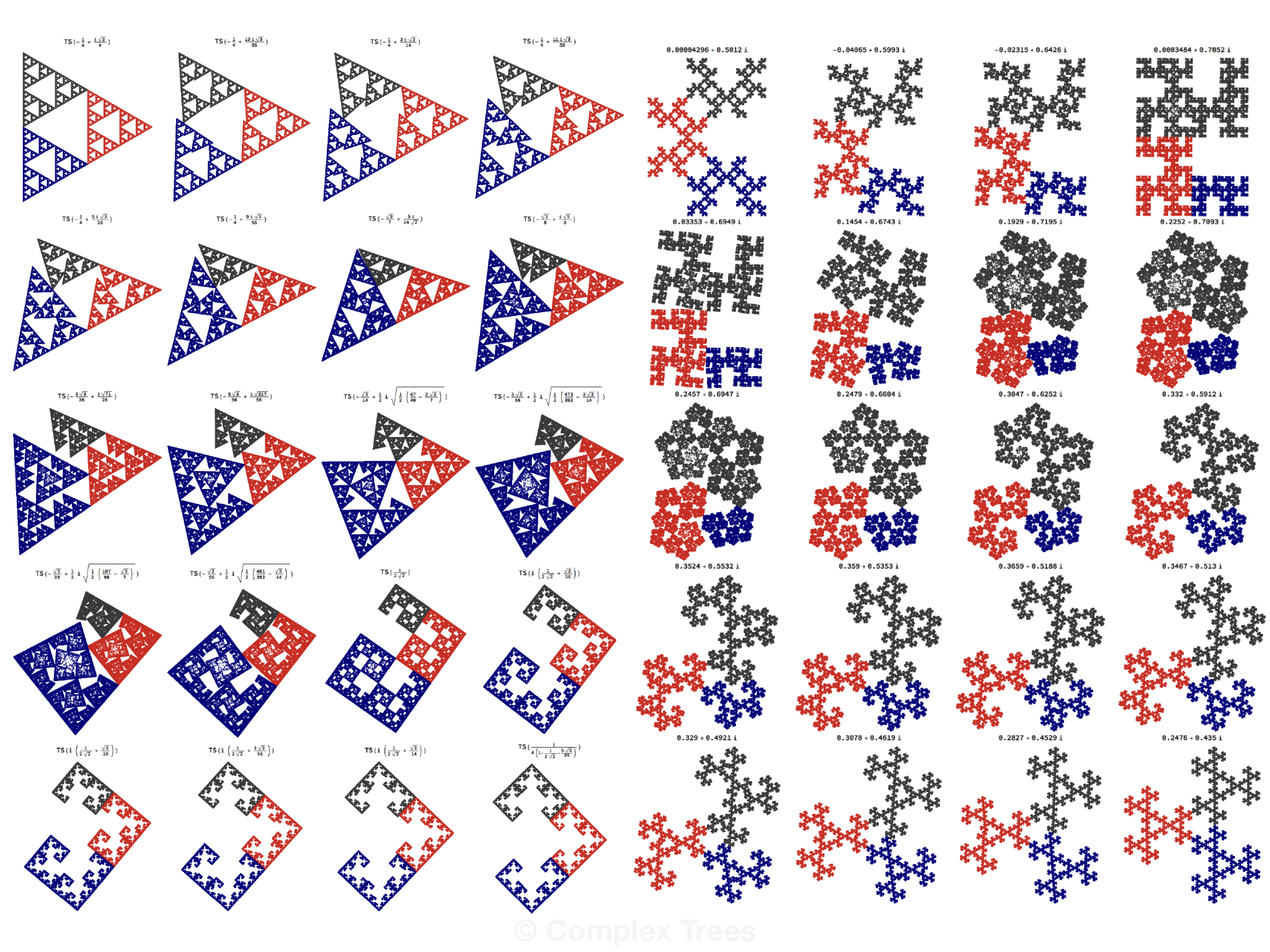

Slide 2323 / 36

Slide text

Slide 2424 / 36

Slide text

Slide 2525 / 36

Slide text

Slide 2626 / 36

Slide text

Slide 2727 / 36

Slide text

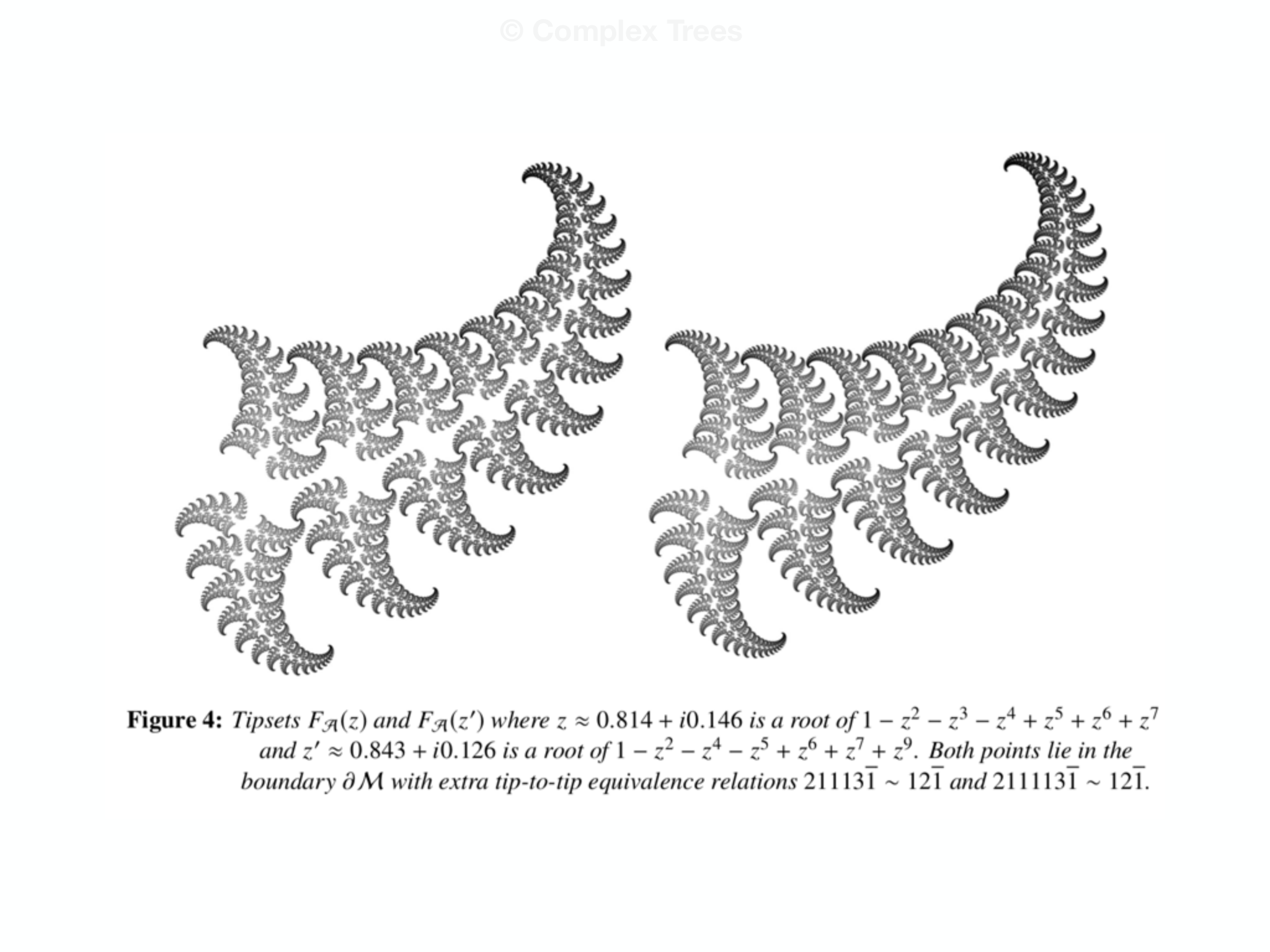

Slide 2828 / 36

Slide text

Slide 2929 / 36

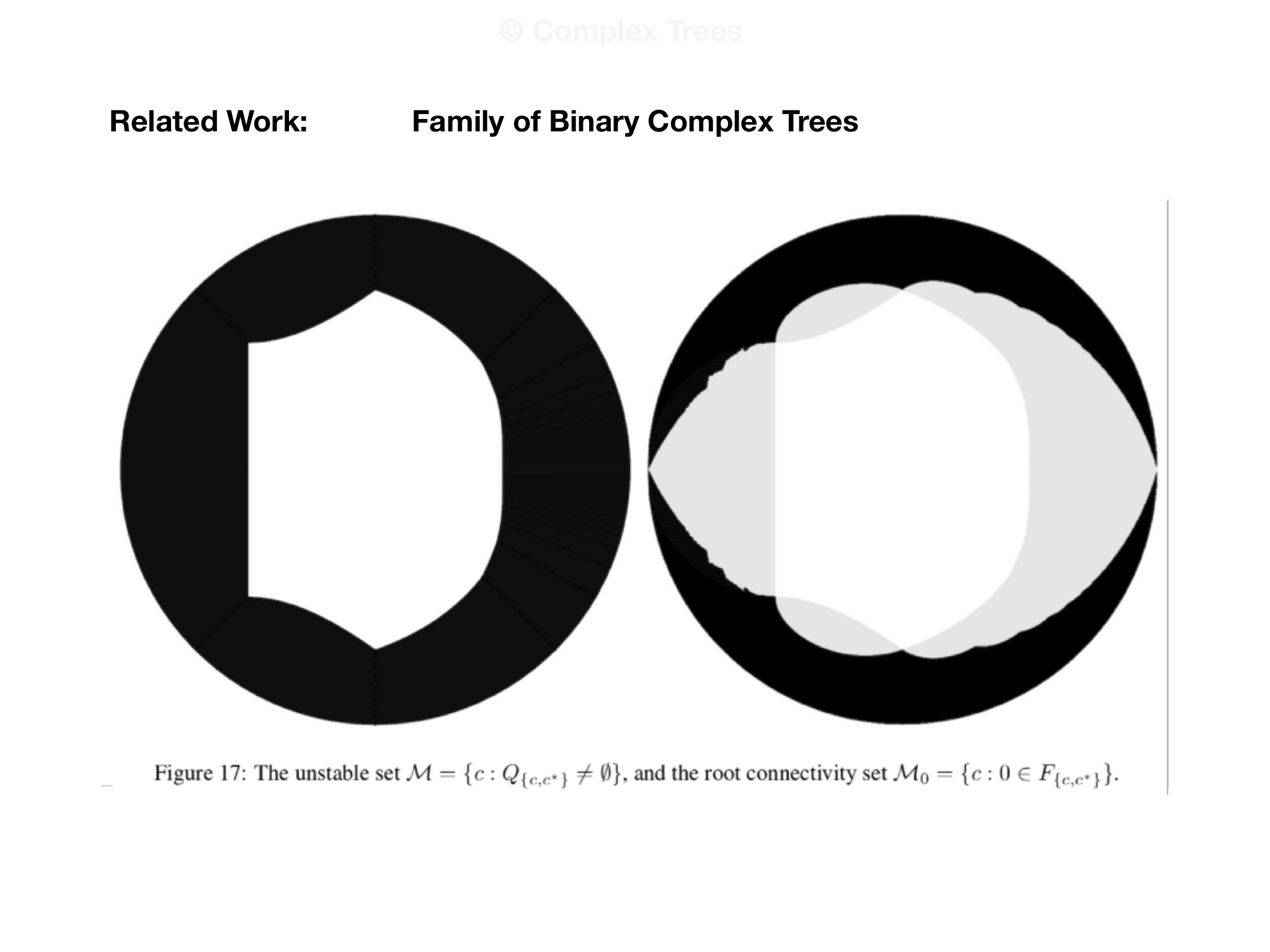

Slide 29: Family of Binary Complex Trees Related Work: © Complex Trees

Slide text

Slide 3030 / 36

Slide text

407

Slide 3131 / 36

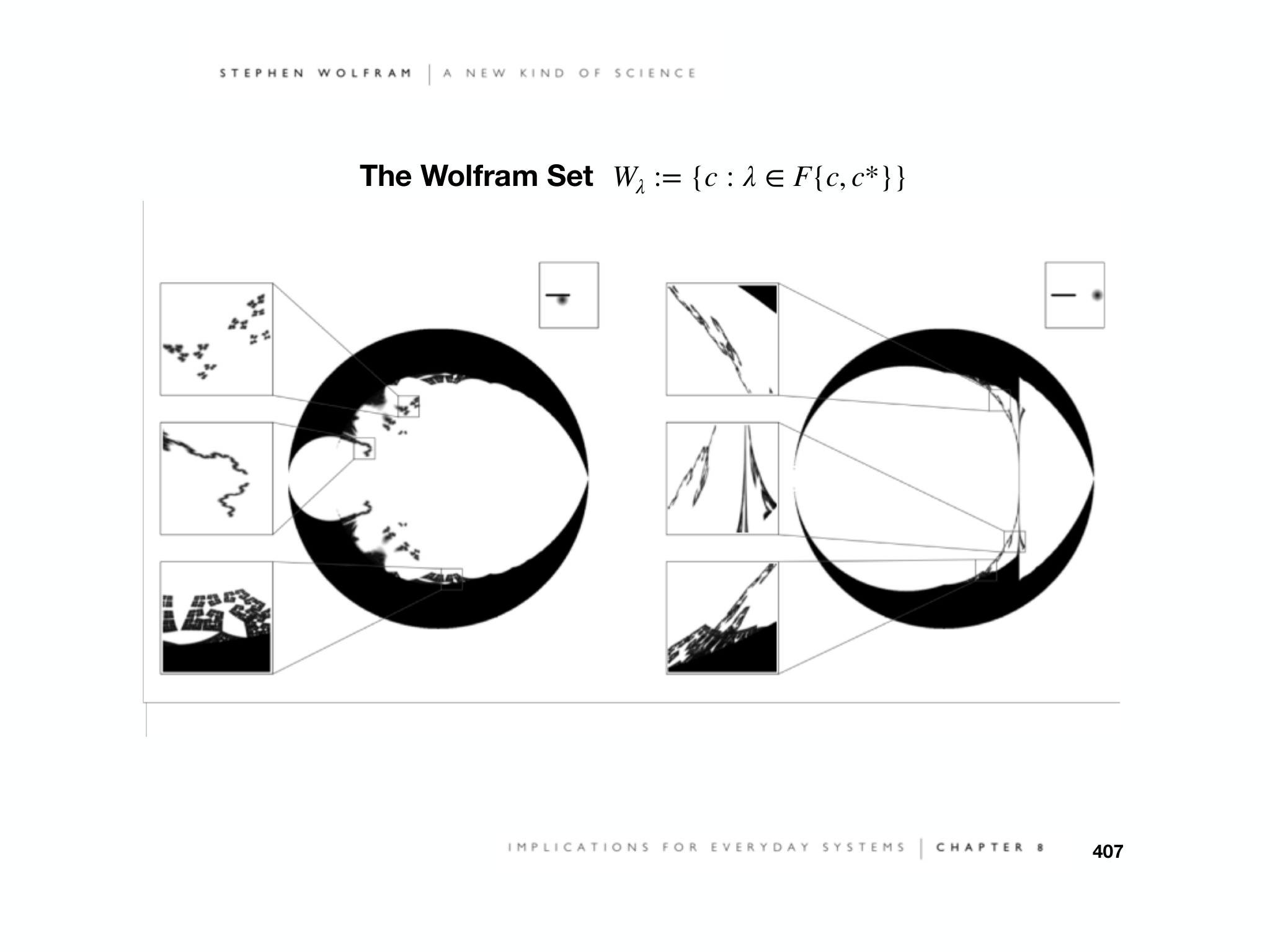

Slide 31: The Wolfram Set W0=W1=M0 © Complex Trees

Slide text

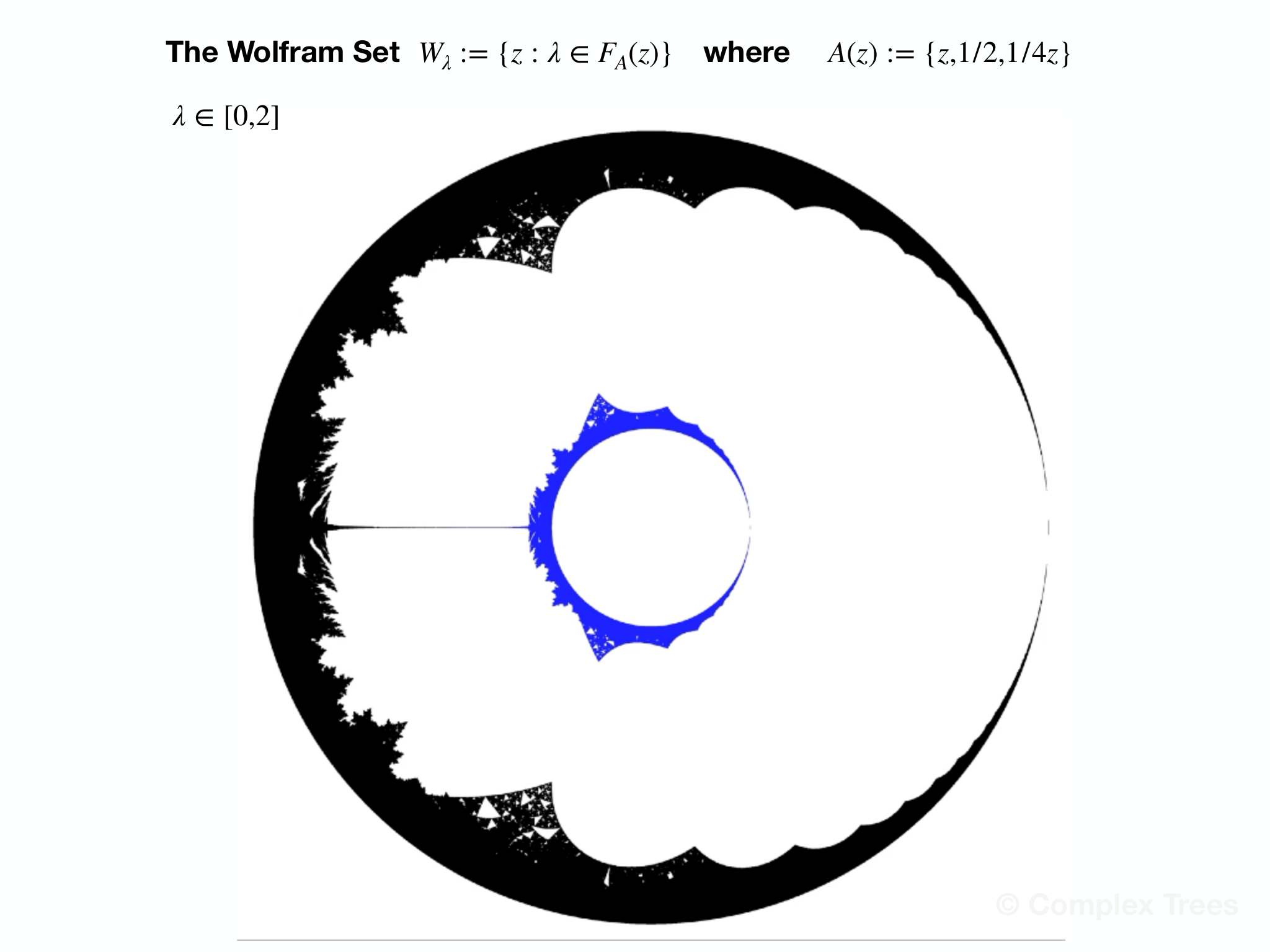

Slide 3232 / 36

Slide text

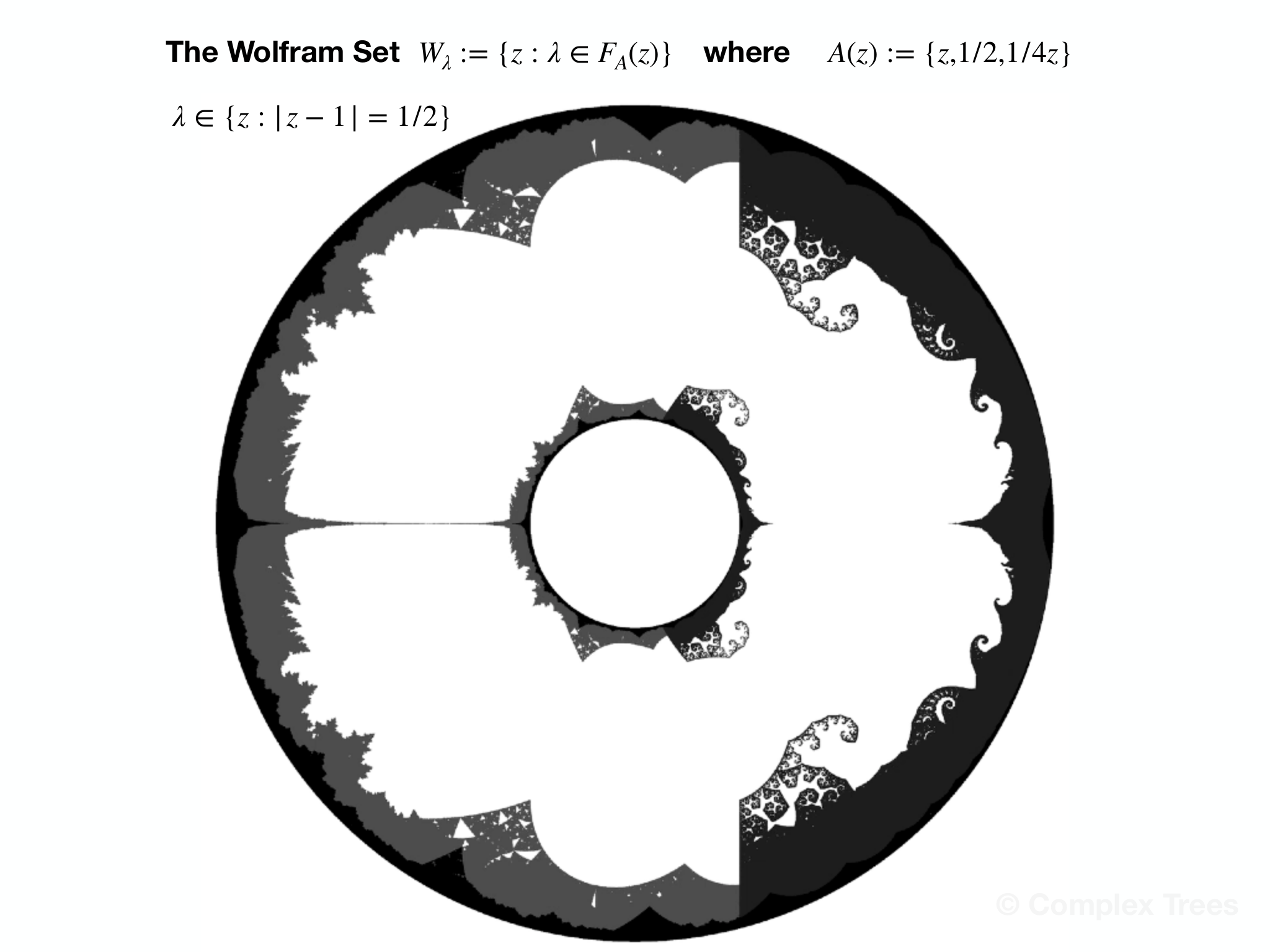

Slide 3333 / 36

Slide text

Slide 3434 / 36

Slide 34: @bernatree Holomorphic Dynamics Group Núria Fagella & Xavier Jarque © Complex Trees Bernat Espigulé “If you wish to advance into the infinite, explore the finite in all d

Slide text

@bernatree Holomorphic Dynamics Group Núria Fagella & Xavier Jarque © Complex Trees Bernat Espigulé “If you wish to advance into the infinite, explore the finite in all directions.” ⎯ Goethe. Thank you!

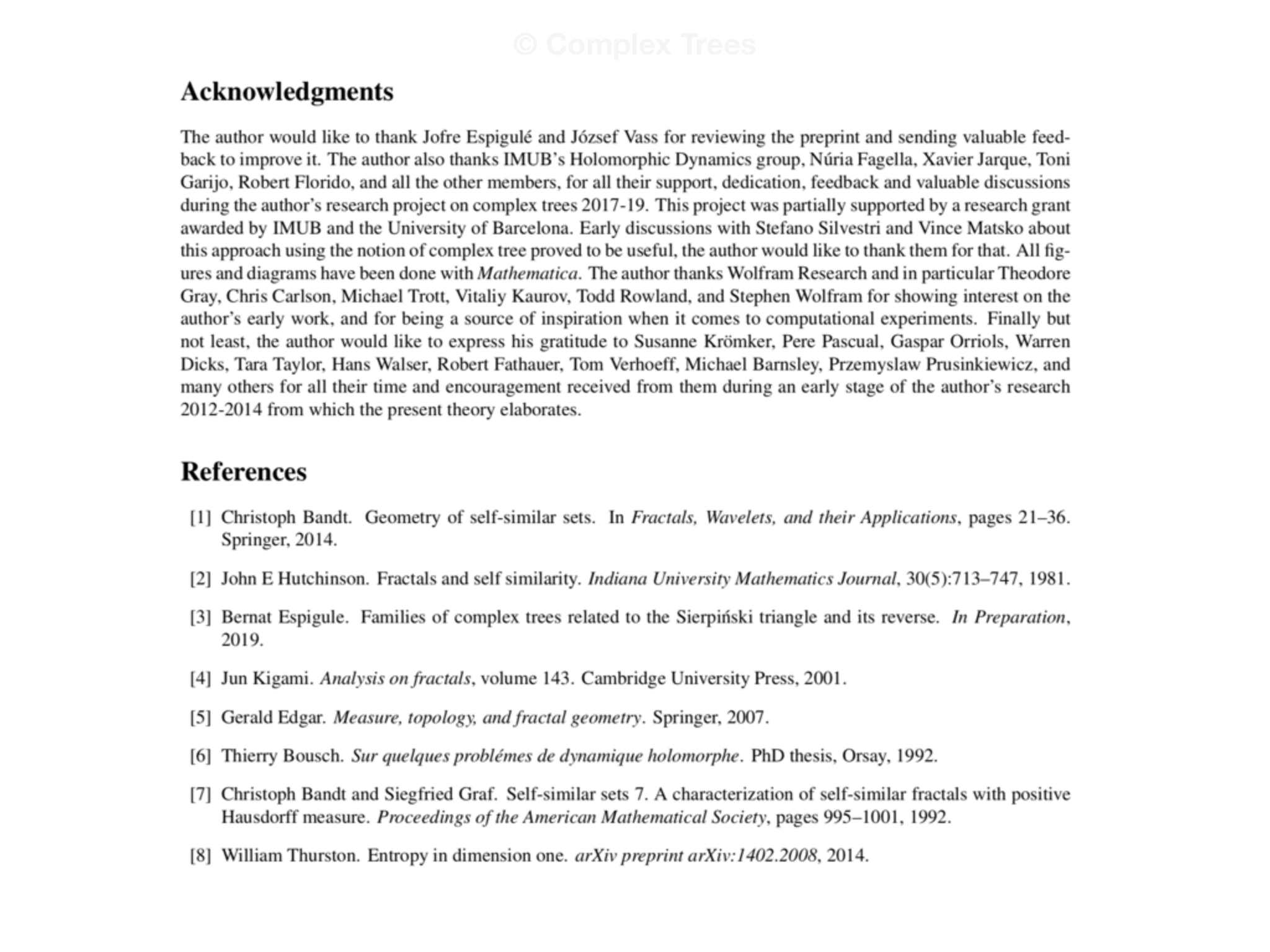

Slide 3535 / 36

Slide text

Slide 3636 / 36

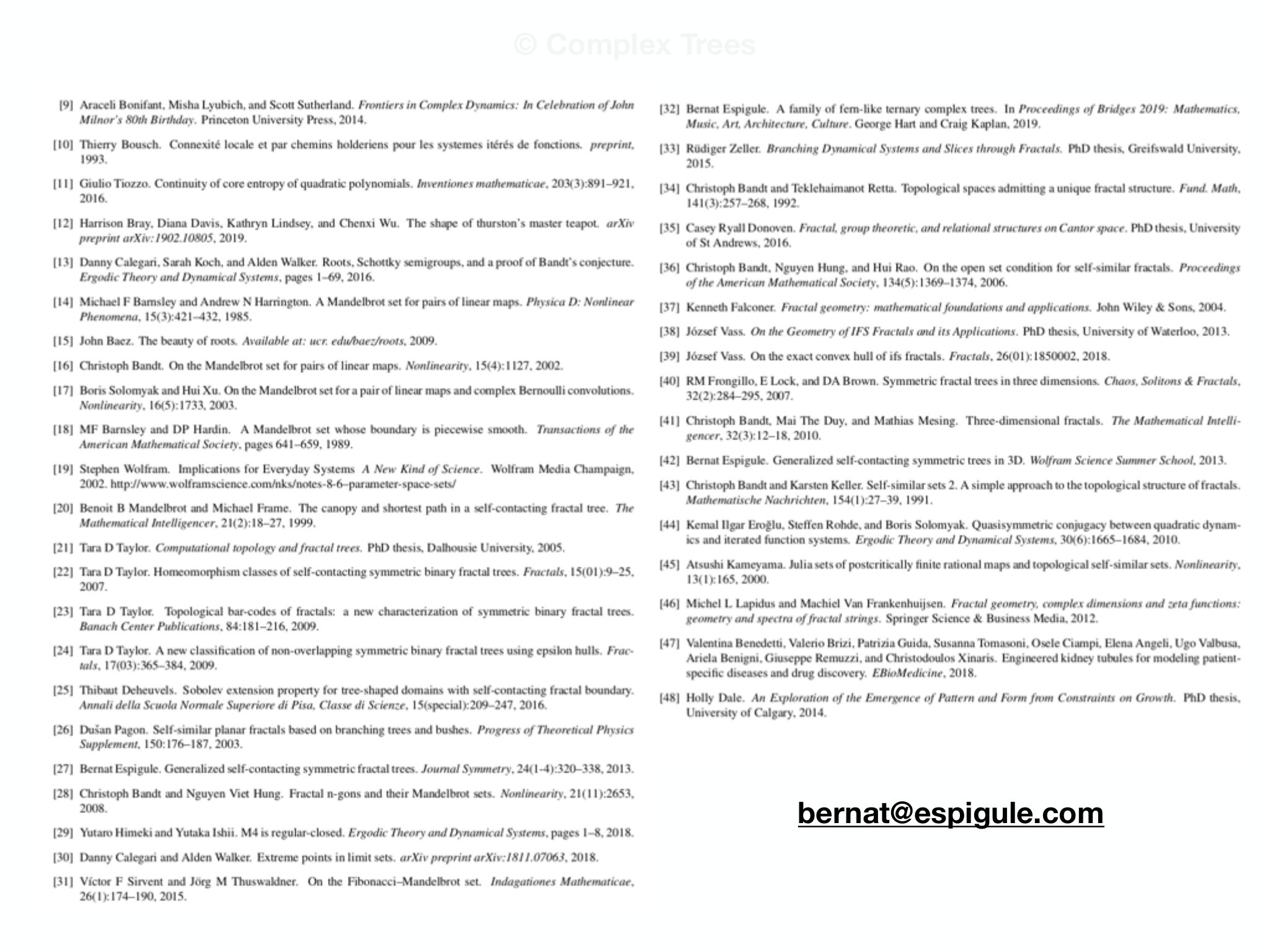

Slide 36: bernat@espigule.com © Complex Trees
